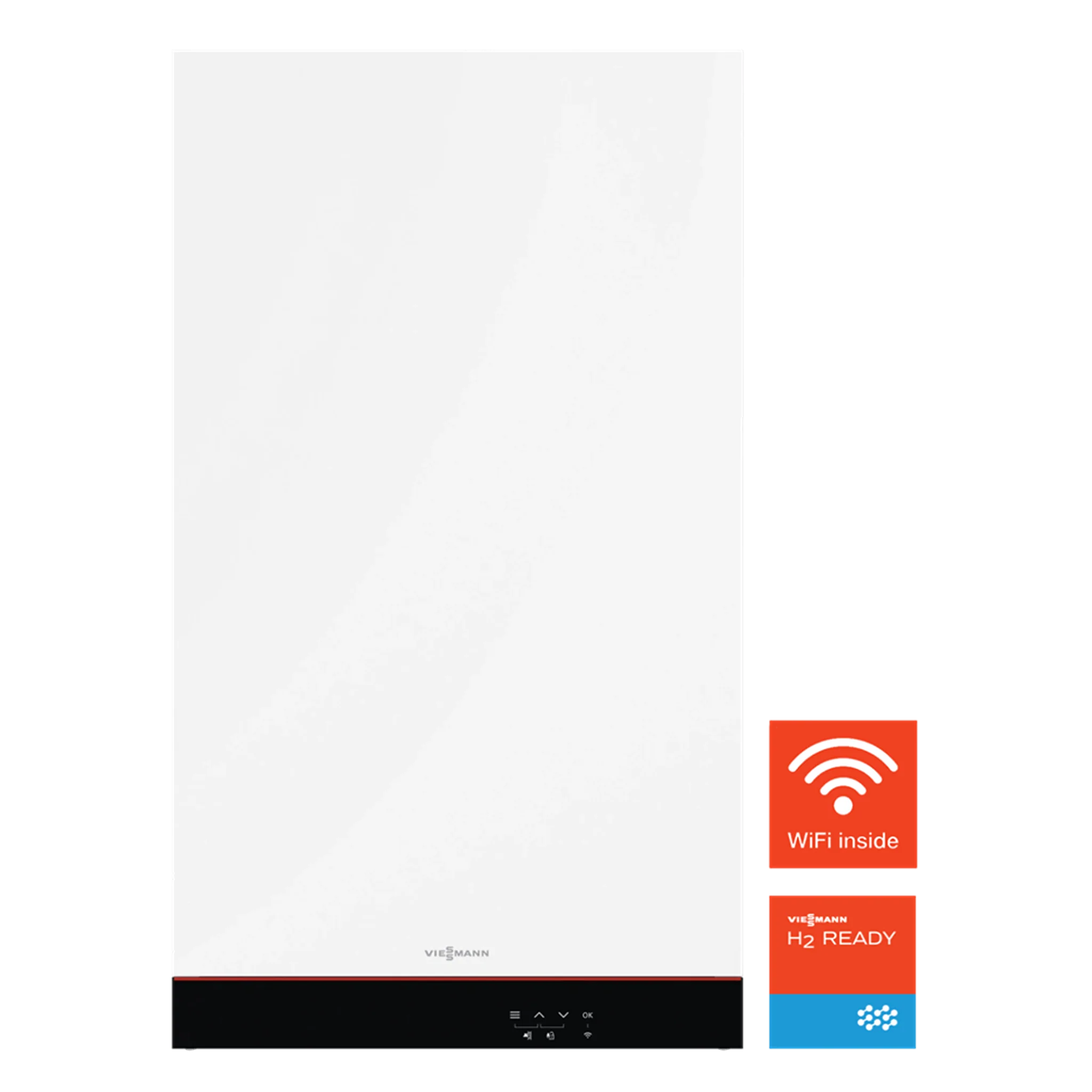

Vitodens 050-W System Boiler B0HA

The new Vitodens 050-W Gas Condensing System Boiler is an attractively priced wall-mounted gas condensing boiler. (LPG compatible)
Fitted with the Viessmann patented Matrix Plus Burner and the Inox-Radial heat exchanger made of stainless steel; these are the heart of your heating system.

Product features:

A gas condensing system boiler, (LPG compatible, conversion to LPG is made at the control unit; no conversion kit required)
Heating output 3.2 to19kW
ERP efficiency 92% (Class A)
Hydrogen Ready Boiler (H2 20% blend)
Ultra Compact - can be fitted in a kitchen cupboard
Just 700 mm in height and 300 mm in depth

Product benefits:

Particularly attractive price/performance ratio
Durable and efficient due to Inox-Radial stainless steel heat exchanger
MatriX-Plus burner with Lambda Pro combustion control system for permanently high efficiency and low emission values
Easy operation via a control unit with LED display and touch buttons
Internet capability with WiFi inside
Ideal for installation in the living area due to low operating noise and compact measurements
Low installation height simplifies replacement of old devices
Modulation range up to 1:8
LPG compatible, no conversion kit required

Touchscreen Display

The boiler can be controlled by the new LCD touchscreen or by the ViCare App, some of the display features:
User-friendly touch buttons
Comprehensive information display
Discreet black panel visual design

WiFi Inside:

simple guided commissioning via the Vitoguide App
homeowner control of heating and DHW programmes using the ViCare App
3rd Party controls not required when using ViCare Thermostat
ViCare Thermostat load-compensated control meets 'Boiler-Plus'
battery powered
RF Connection

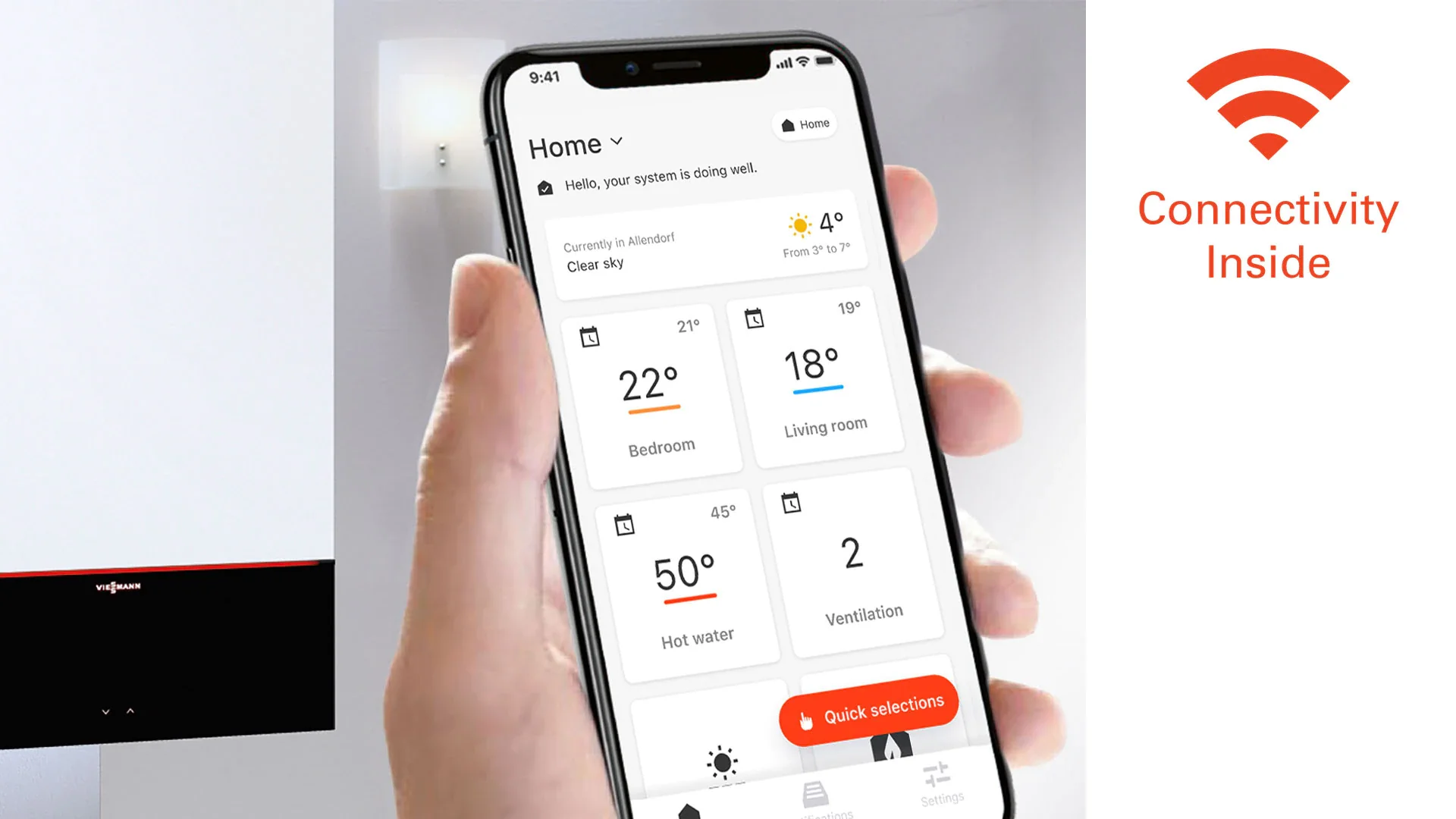

Viessmann ViCare Application:

Download ViCare on Google Play
Download ViCare on App Store

Additionally, you may require:

A suitable flue (see Flue tab)
A ViCare Thermostat for load compensation (see Accessories tab)
An outdoor temperature sensor for weather compensation operation (see Accessories tab)

Compatible Installation Accessories
Note:- Search Product Accessories code in the Store Search bar.

Product Code		Description
ZK04307		Pre-plumbing jig for surface mounting Including valves
ZK06124		Spacer frame for rear pipework inc fasteners. Wall clearance: 90 mm Excl valves

BOILER CONTROLS

Product Code		Description
ZK05991		ViCare thermostat (modulating) The function of a wireless, battery-operated room thermostat is provided in conjunction with the ViCare climate sensor. Operation via the ViCare app.
7141709		Vitotrol 100 room thermostat hard wired
7170149		Vitotrol 100 UTA analogue programmable room thermostat 24h hard wired
Z007691		Vitotrol 100 UTDB digital programmable room thermostat - 7-day, single channel hard wired
Z007692		Vitotrol 100 UTDB-RF digital wireless programmable room thermostat - 7-day, single channel
ZK04647		Contact thermostat for underfloor heating with connection cable (1.5 m long)
Z014134		Vitotrol 100 OT Modulating room temperature controller - Open Therm

BOILER ACCESSORIES

Product Code		Description

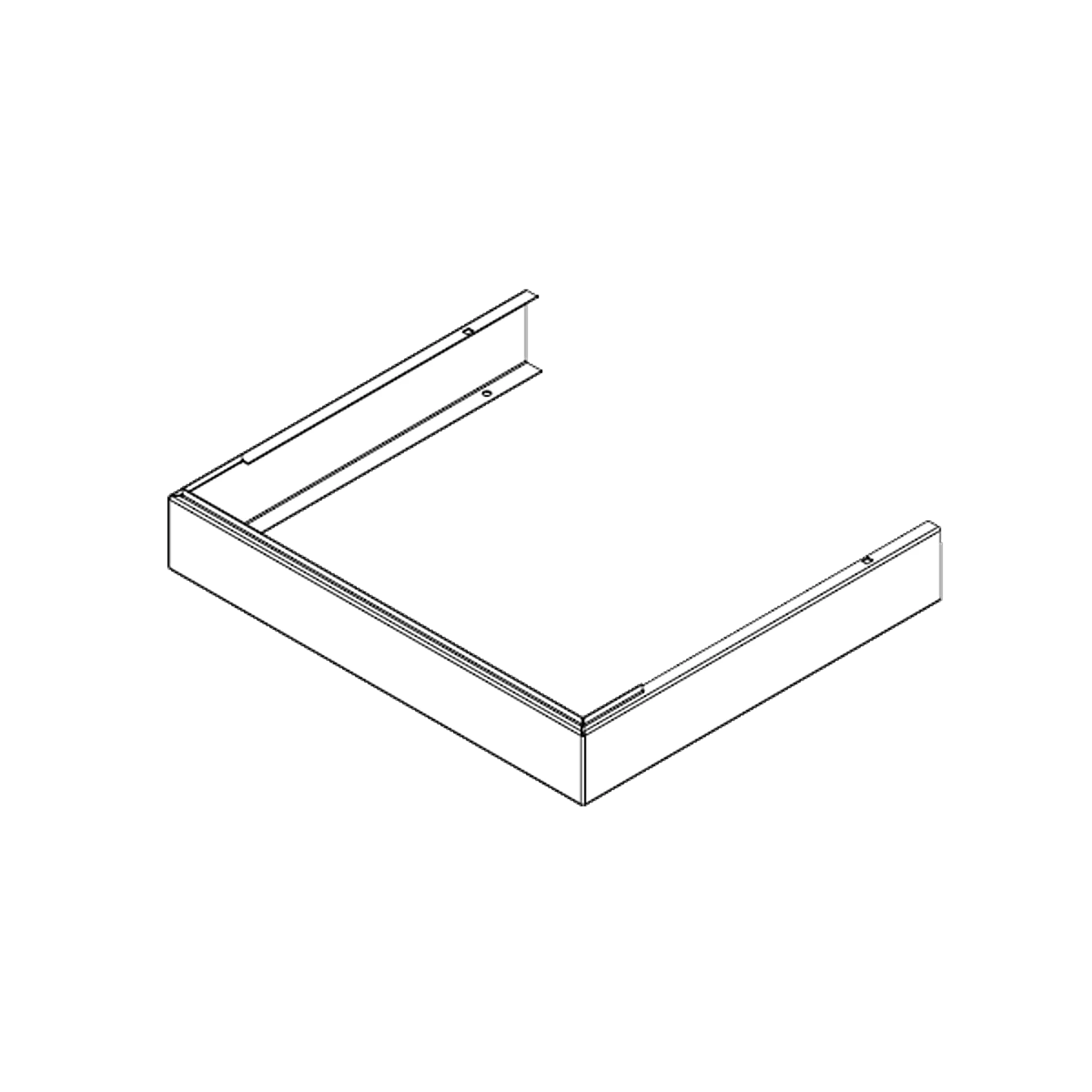

ZK06090		Valve fittings cover for device width 400 mm
ZK04306		Outside weather comp temperature sensor - NTC 10 kOhm
ZK04647		Contact thermostat for underfloor heating with connection cable (1.5 m long)

Accessories & Controls for the Vitodens 050-W B0KA
