EPS Insulating Jacket Mantle for FlexTherm - Colour White

EPS Insulating Jacket Mantle Only, Doesn't include with Vessel / Tank.

EPS insulating mantle with a polypropylene outer shell and lid (white, RAL 9010 / white aluminum, RAL 9006).

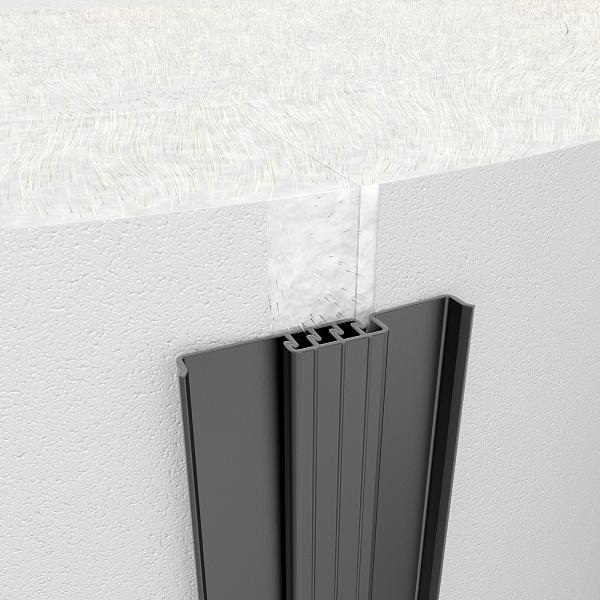

Approximately 25% reduction of heat loss compared to soft foam insulation. Easy to install using a zip

Technical Specifications

• EPS insulating mantle: fire category B1 according to DIN 4102.
• Thermal conductivity = 0.032 W/(m.K) according to DIN EN 12667.

Type	Colour	Thickness [mm]		Order Code
	200 PS	white	80	1	18675
	200 PS	white aluminium	80	1	18676
	300 PS, PS-R	white	80	1	18678
	300 PS, PS-R	white aluminium	80	1	18679
	500 PS, PS-R, KPB, KPS, Duo FWS, FWP	white	80	1	18681
	500 PS, PS-R, KPB, KPS, Duo FWS, FWP	white aluminium	80	1	18682
	600 PS, PS-R, PS-T, KPB, KPS	white	80	1	18684
	600 PS, PS-R, PS-T, KPB, KPS	white aluminium	80	1	18685
	750 PS, PS-R, PS-T, KPB, KPS, Duo FWS, FWP	white	80	1	18687
	750 PS, PS-R, PS-T, KPB, KPS, Duo FWS, FWP	white aluminium	80	1	18688
	850 PS, PS-R, PS-T, KPB, KPS	white	80	1	18690
	850 PS, PS-R, PS-T, KPB, KPS	white aluminium	80	1	18691
	1000 (Ø 790) PS, PS-R, PS-T, KPB, KPS, Duo FWS, FWP	white	80	1	18693
	1000 (Ø 790) PS, PS-R, PS-T, KPB, KPS, Duo FWS, FWP	white aluminium	80	1	18694
	1000 (Ø 850) PS, PS-R, PS-T	white	80	1	18696
	1000 (Ø 850) PS, PS-R, PS-T	white aluminium	80	1	18697
	1200 PS, PS-R, PS-T	white	100	1	18699
	1200 PS, PS-R, PS-T	white aluminium	100	1	18700
	1500 PS, PS-R, PS-T, Duo FWS, FWP	white	100	1	18702
	1500 PS, PS-R, PS-T, Duo FWS, FWP	white aluminium	100	1	18703
	1800 PS	white	100	1	18705
	1800 PS	white aluminium	100	1	18706
	2000 PS, PS-R, PS-T	white	100	1	18708
	2000 PS, PS-R, PS-T	white aluminium	100	1	18709
	3000 PS	white	100	1	18711
	3000 PS	white aluminium	100	1	18712
	4000 PS	white	100	1	18714
	4000 PS	white aluminium	100	1	18715
	5000 PS	white	100	1	18717
	5000 PS	white aluminium	100	1	18718
