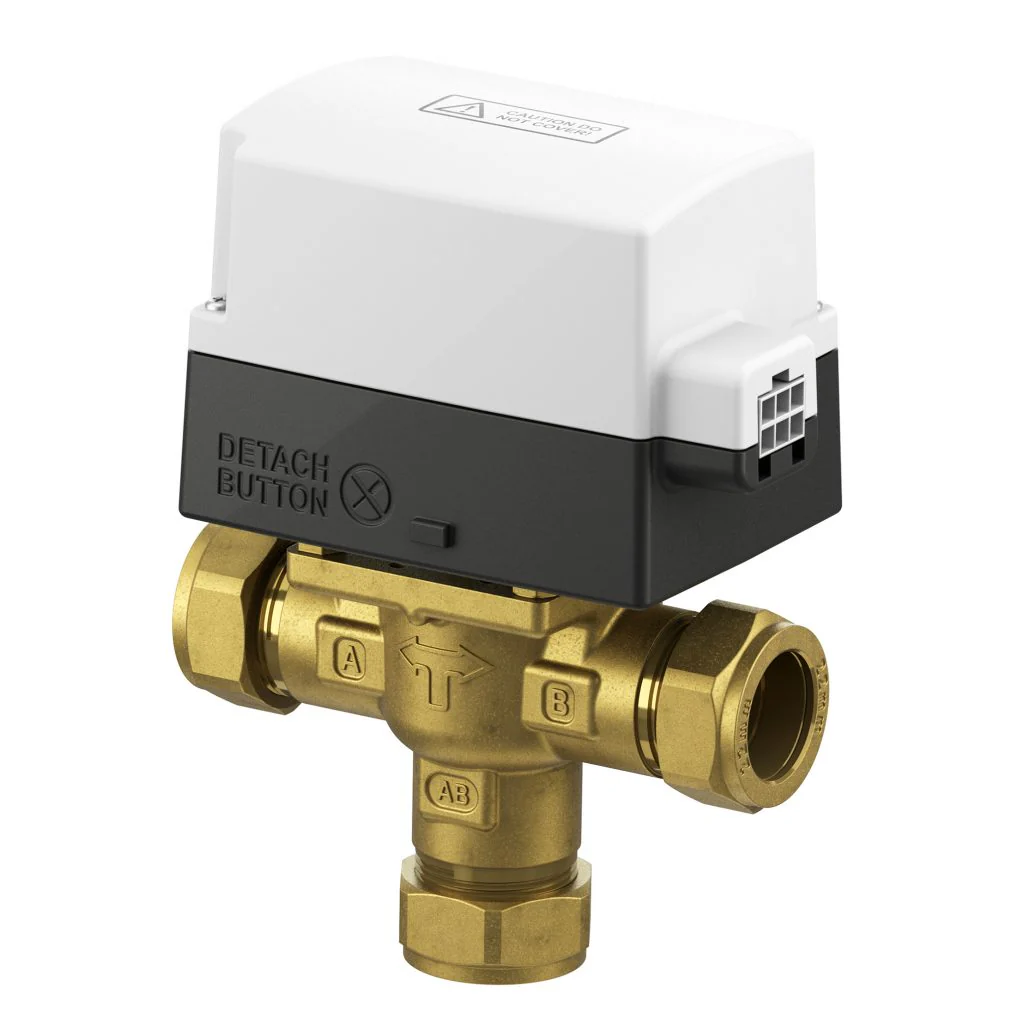

B322PF - 3 Port 22mm Mid Position / Diverter Valve
HomeStore

B322PF - 3 Port 22mm Mid Position / Diverter Valve

B322PF - 3 Port 22mm Mid Position / Diverter Valve

$28.22

Original: $94.08

-70%
B322PF - 3 Port 22mm Mid Position / Diverter Valve—

$94.08

$28.22

The Story

Direct from EPH - Delivery Lead time 4-5 Working days :  Live Chat / 01985 850982



3 port compression motorised valves with detachable actuator and detachable cable. These motorised valves are the perfect solution for zoning your hot water or central heating circuits.

Technical Data

PRODUCT CODE CONNECTION TYPE FLOW RATE MAX. CLOSE OFF PRESSURE*
B322PF 22mm compression 4.6 kvs 1.6 bar (A) 1.2 bar (B)
B328PF 28mm compression 6.8 kvs 1.2 bar (A) 0.8 bar (B)
Switch Rating 5(2)A 230Vac
Max Ambient Temp 50˚C
Max Fluid Temp 88˚C



B322PF - 3 Port 22mm Mid Positio

Download

B32_PF Datasheet

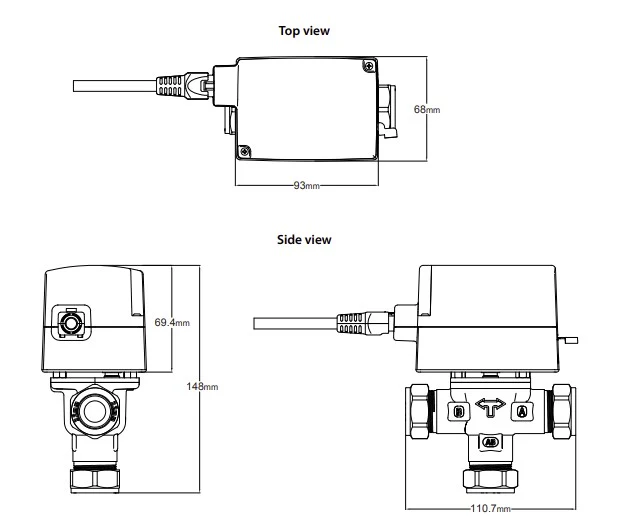

B322PF - 3 Port 22mm Mid Position / Diverter Valve - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Direct from EPH - Delivery Lead time 4-5 Working days :  Live Chat / 01985 850982



3 port compression motorised valves with detachable actuator and detachable cable. These motorised valves are the perfect solution for zoning your hot water or central heating circuits.

Technical Data

PRODUCT CODE CONNECTION TYPE FLOW RATE MAX. CLOSE OFF PRESSURE*
B322PF 22mm compression 4.6 kvs 1.6 bar (A) 1.2 bar (B)
B328PF 28mm compression 6.8 kvs 1.2 bar (A) 0.8 bar (B)
Switch Rating 5(2)A 230Vac
Max Ambient Temp 50˚C
Max Fluid Temp 88˚C



B322PF - 3 Port 22mm Mid Positio

Download

B32_PF Datasheet
