Direct from EPH - Delivery Lead time 4-5 Working days : Live Chat / 01985 850982

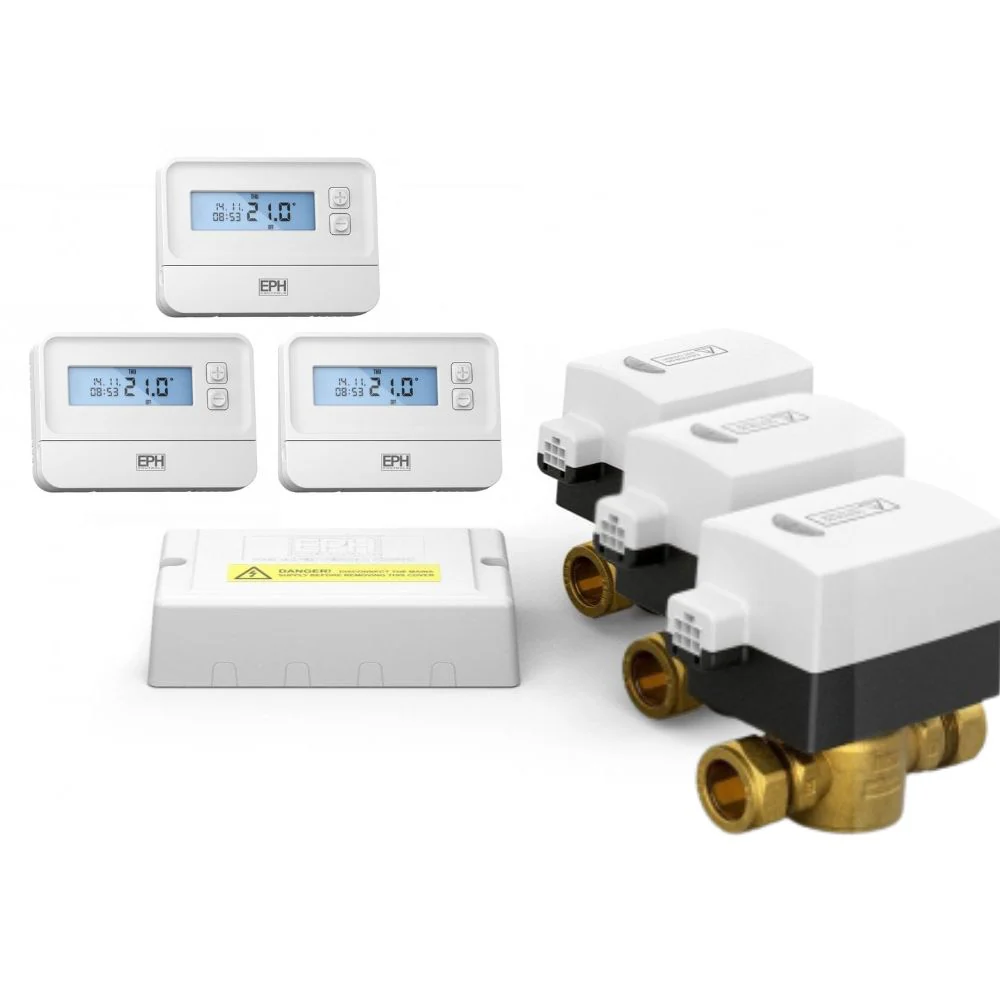

This 3-zone wireless combi control pack comes with all the components necessary to establish 3 separate heating zones in one convenient package. Ideal for homes with a combi boiler and hard wiring restrictions, this pack grants increased control of heating, optimizing cost efficiency in 3 areas such as upper and lower floors
Pack includes c/w
3 x V222P MOTORISED VALVE
3 x CP4M - Programmable RF Thermostat
1 x WC2 Wiring Center
CP4M – OpenTherm® Mains Operated Programmable
This digital programmable room thermostat is suitable for controlling 1 heating zone. It features OpenTherm®, Optimum Start, TPI and On/Off control modes.
The thermostat is mounted on a 6-pin industry standard backplate.
Boiler Plus Compliant.
Technical Data

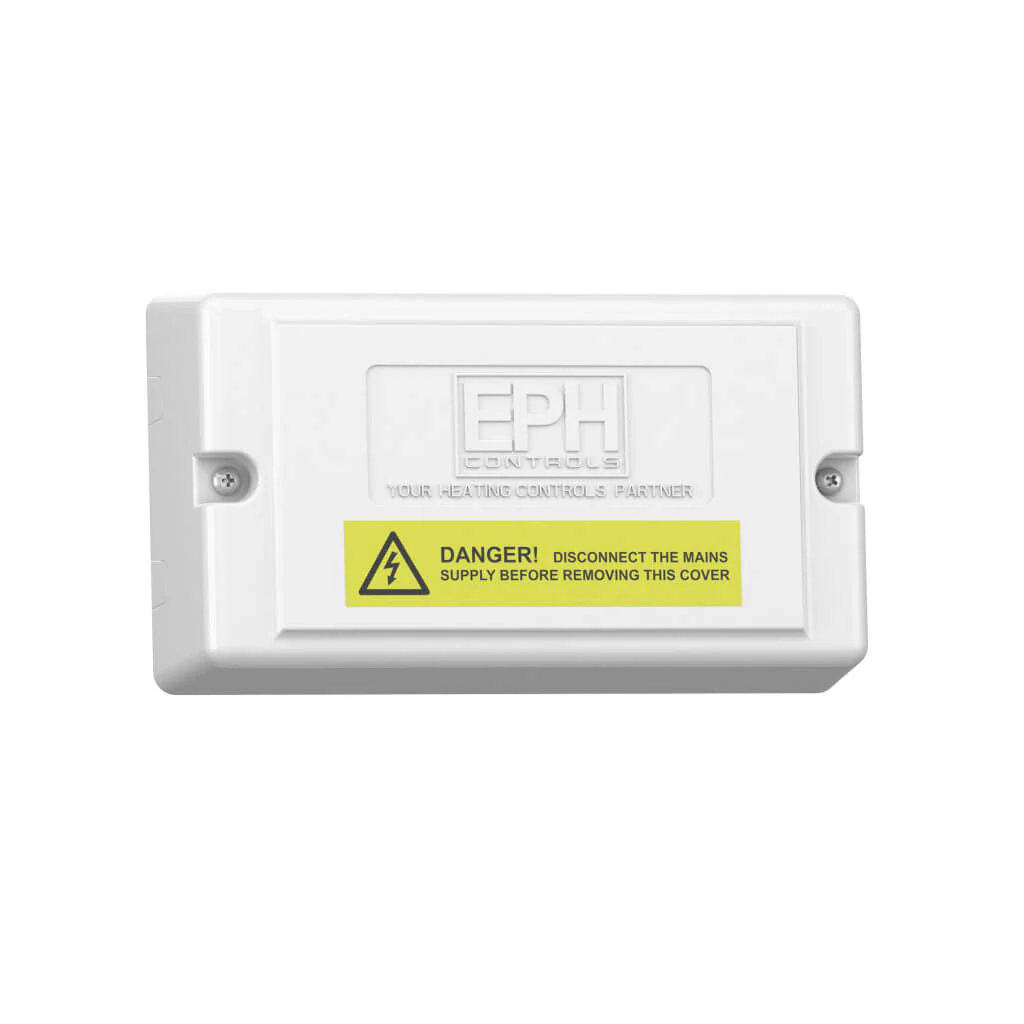

WC2 - 12 Way Wiring Centre – Block Connector Strip
Wiring centres for use in central heating systems.

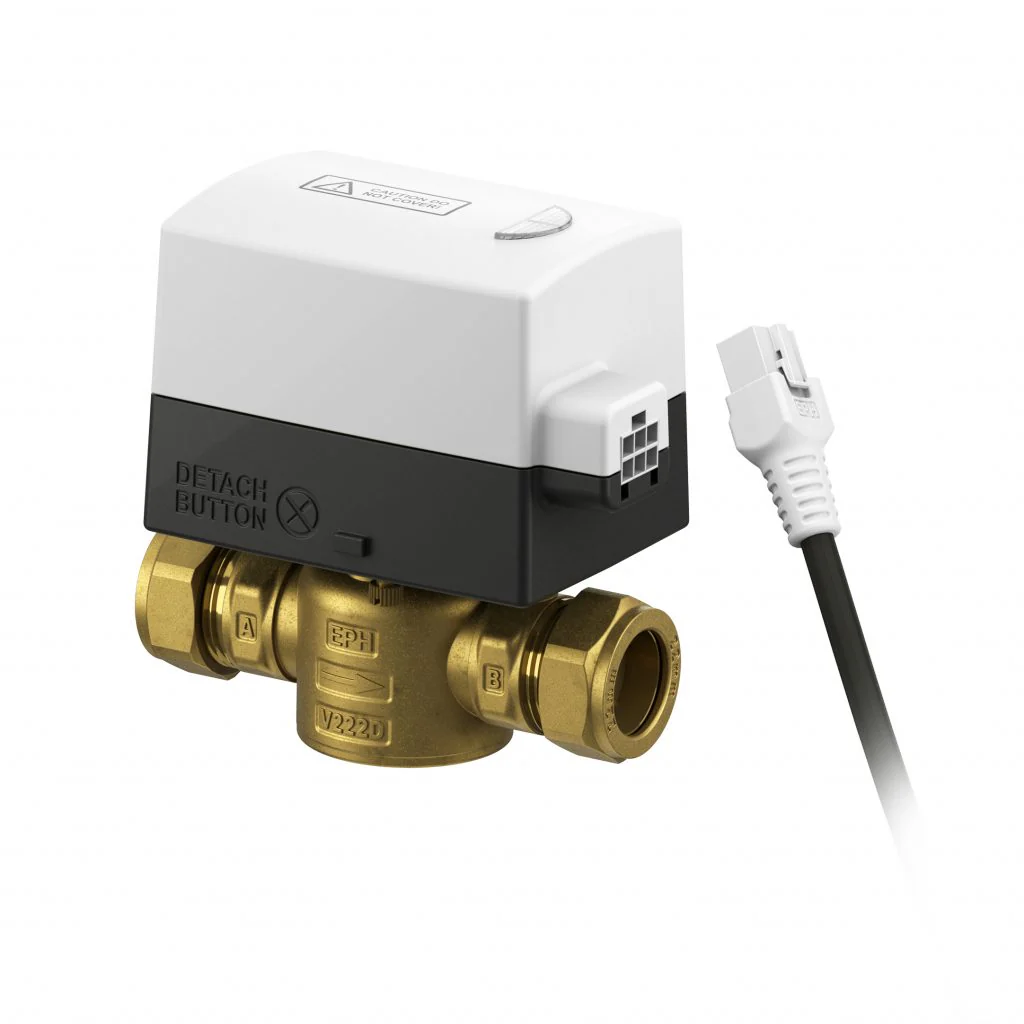

V222P - 2 Port 22mm Motorised Valve 4.6 kvs 1.0 bar
The V222P range of motorised valves is specifically designed for use in domestic applications only.
They are not designed for use in commercial or industrial applications such as schools, nursing homes or hotels where large commercial pump sets are fitted.
Warranty will be void If a valve is fitted in any application other than domestic. Please note we have a full range of commercial and industrial valves to suit every application.
- V222P
- CONNECTION TYPE - 22mm compression
- FLOW RATE 4.6 kvs
- MAX. CLOSE OFF PRESSURE - 1.0 bar
| Switch Rating | 11(3)A 230Vac |
| Max Ambient Temp | 50˚C |
| Max Fluid Temp | 88˚C |
Download
