The Story
Direct from EPH - Delivery Lead time 4-5 Working days : Live Chat / 01985 850982
EPH Controls’ range of hardwired programmers offers a comprehensive solution for all zoning requirements with models available from 1 to 4 channels. With market-leading functionality such as auto summer winter time, boost, advance and service interval these programmers, offer simple design functionality and are ideally suited to householders.

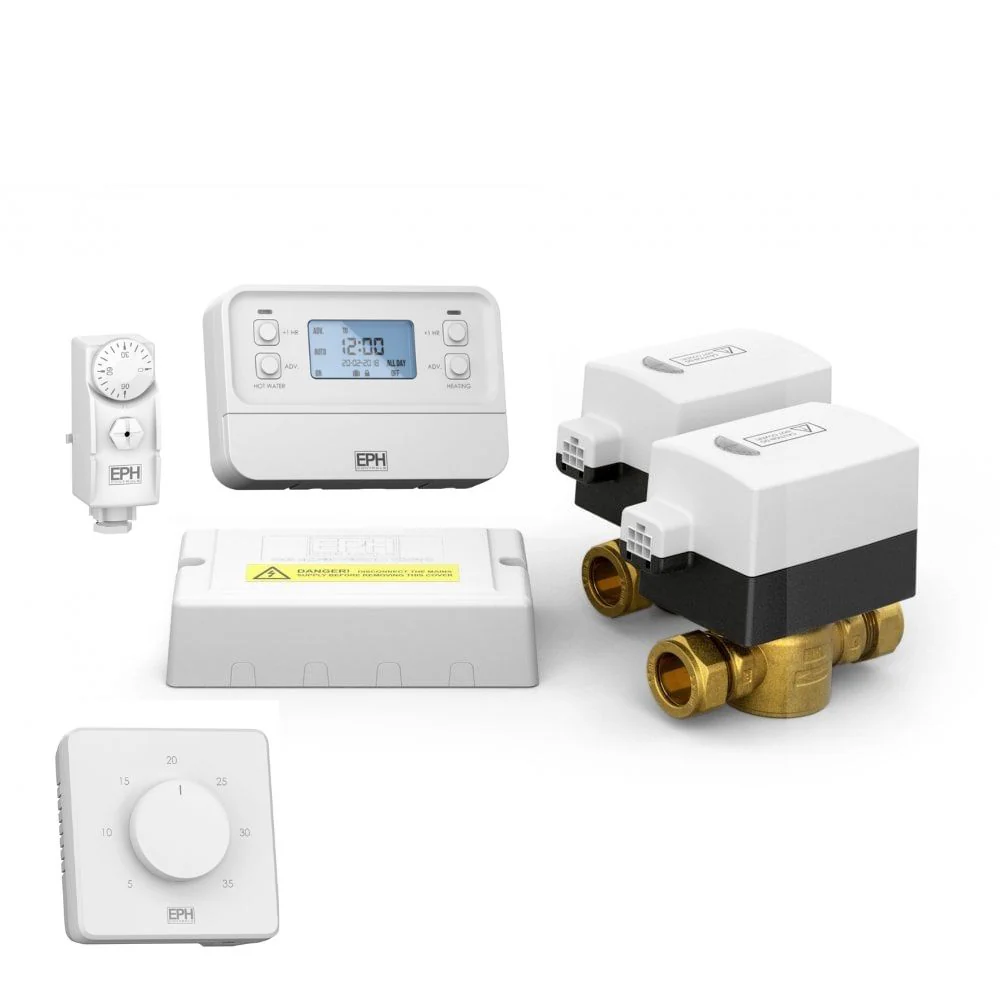

Includes
1 x A27-HW – 2 Zone Programmer
2 x V228P - 2 Port Valve – 28mm compression 6.8 kvs 0.6 bar

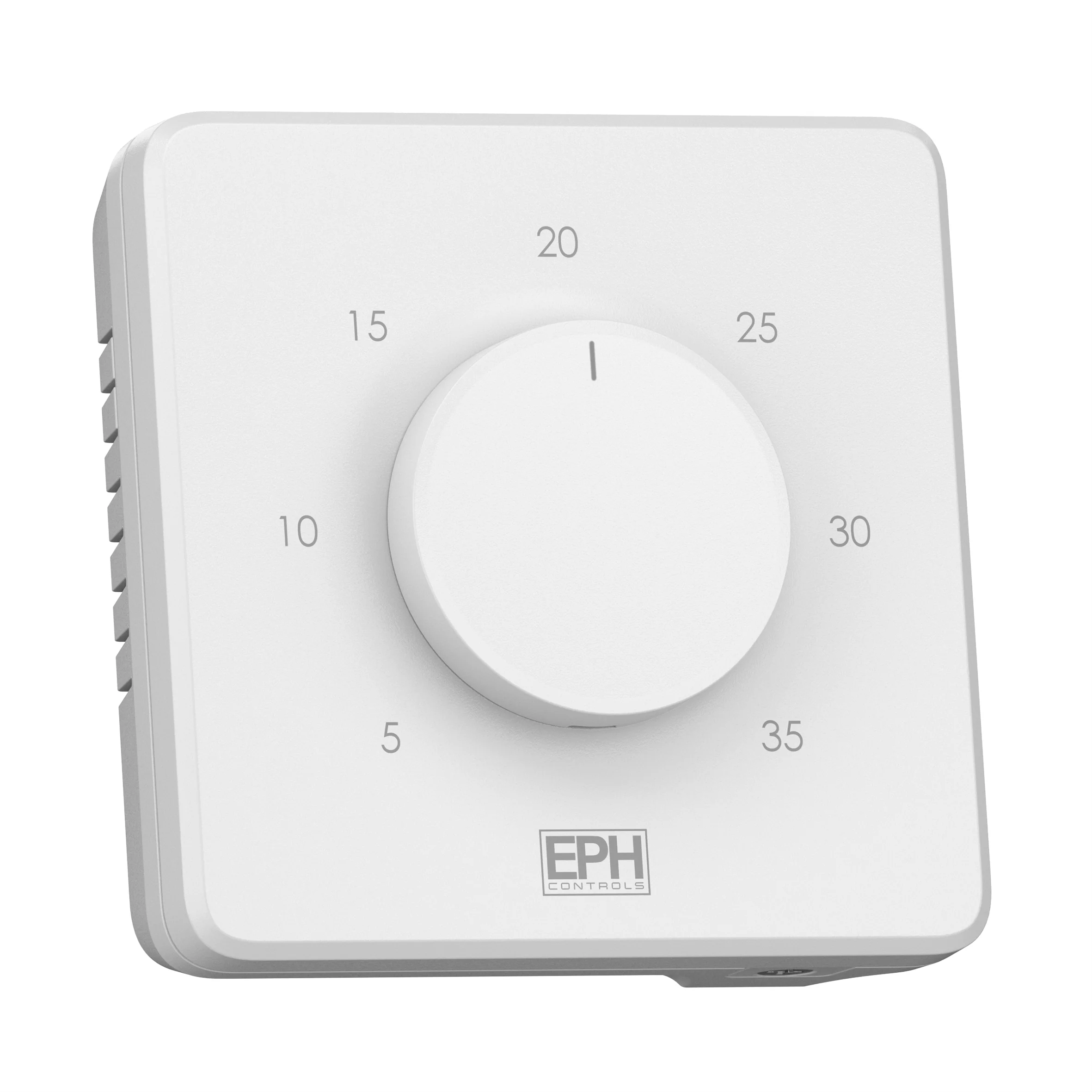

1 x CM2 Thermostat
1 x WRP Pipe / Cylinder Thermostat
1 x WC2 - Wiring Centre – Block Connector Strip
1 x A27-HW – 2 Zone Programmer
2 zone programmer with 3 operating modes – 24h, 5/2d & 7 days. Perfect for controlling 2 zones in a central heating system.
| PRODUCT CODE | SWITCH OUTPUT | PRODUCT WARRANTY | SCREEN DIMENSIONS |
|---|---|---|---|
| A27-HW | 230Vac | 2 Year | 51 x 23mm |

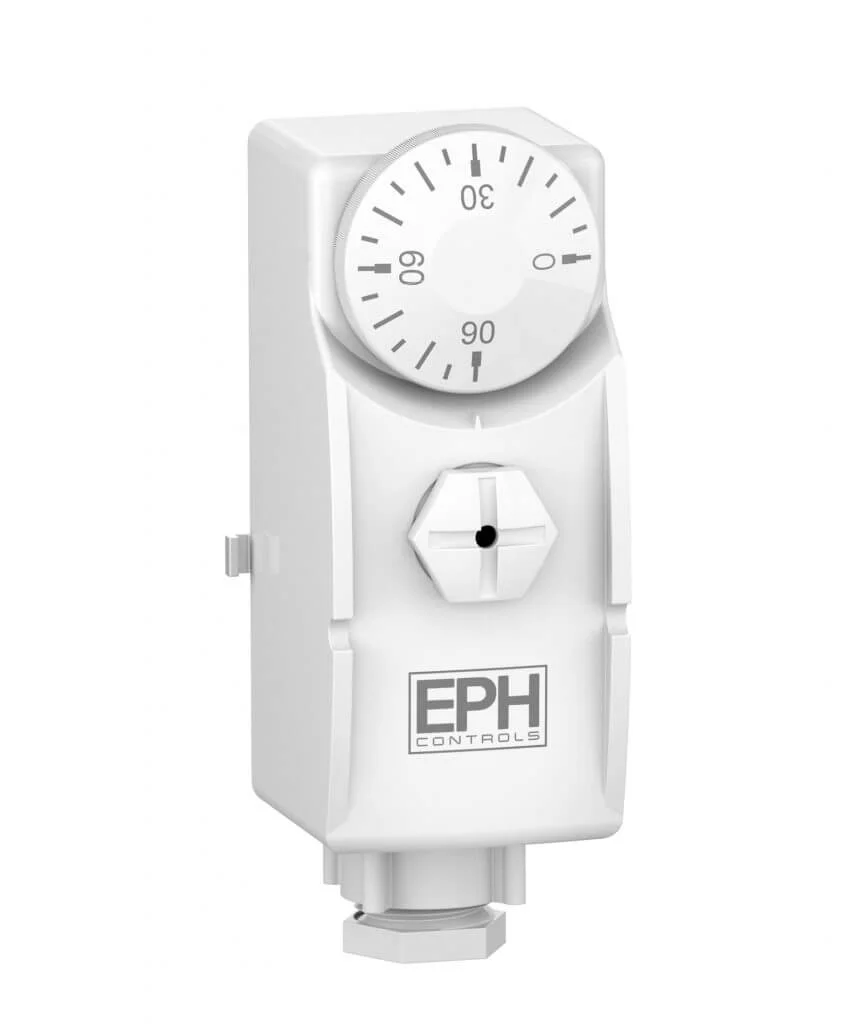

1 x Pipe / Cylinder Thermostat
Pipe / Cylinder thermostat suitable for controlling hot water cylinders or central heating pumps. Available in both standard and tamperproof versions.
Technical Data

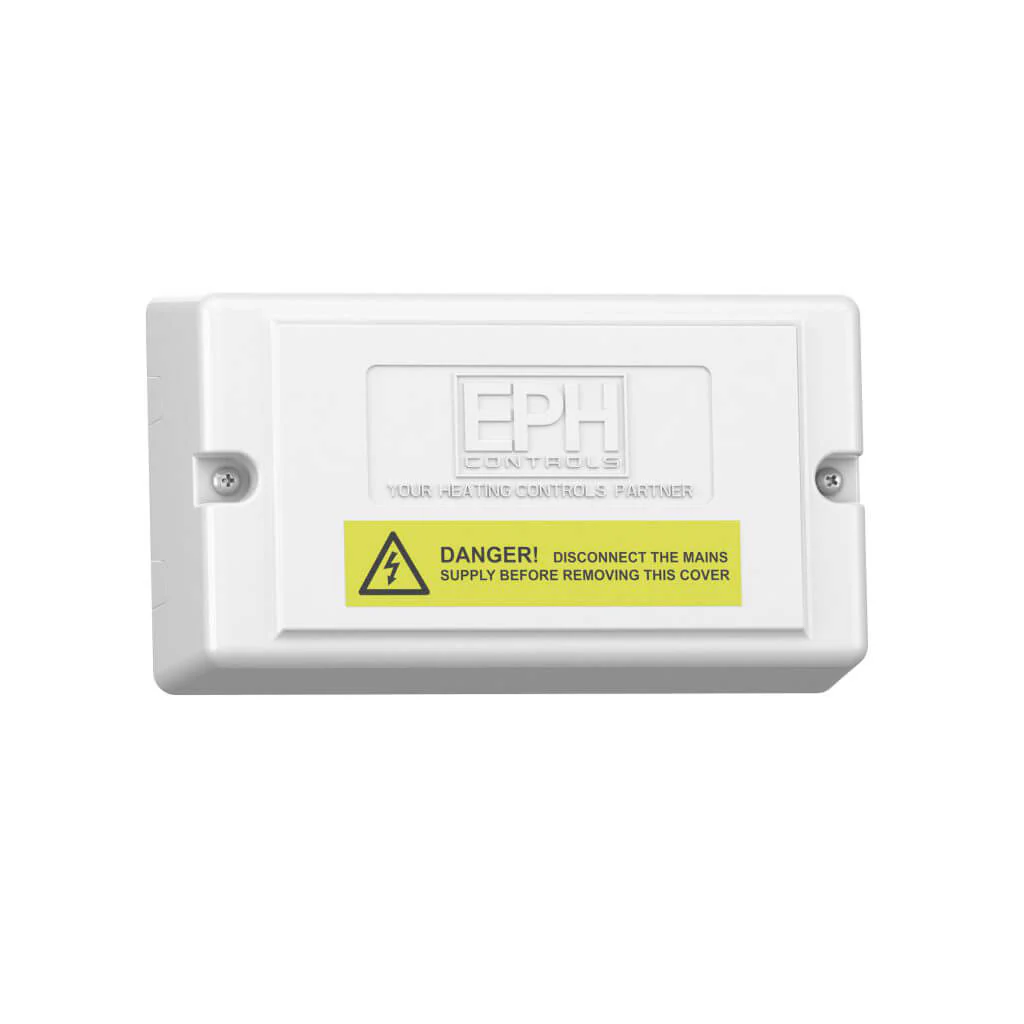

WC2 - 12 Way Wiring Centre – Block Connector Strip
Wiring centres for use in central heating systems.

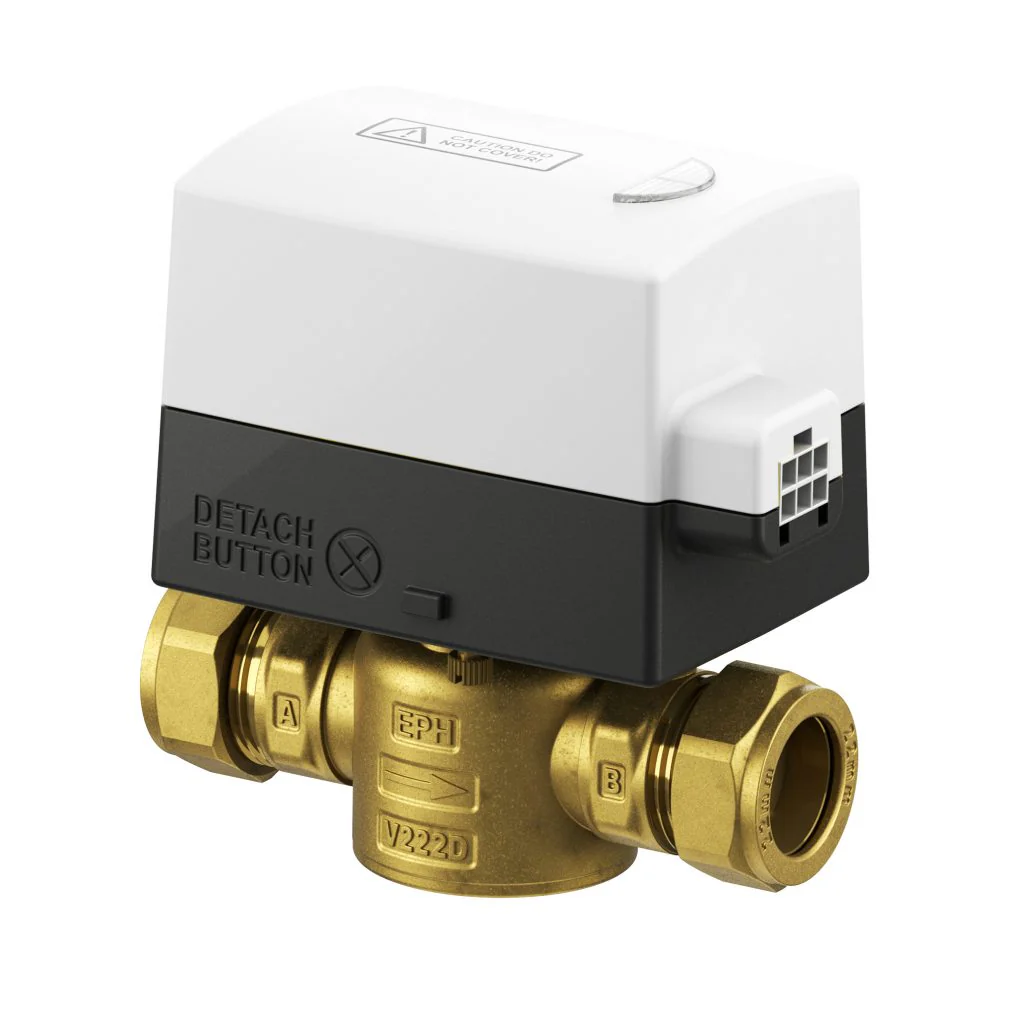

V228P - 2 Port 28mm Compression Motorised Valve
2 port compression motorised valves with detachable actuator, detachable cable and power on light. These motorised valves are the perfect solution for zoning your hot water or central heating circuits.
- V228P
- CONNECTION TYPE - 28mm compression
- FLOW RATE 6.8 kvs
- MAX. CLOSE OFF PRESSURE - 0.6 bar
| Switch Rating | 11(3)A 230Vac |
| Max Ambient Temp | 50˚C |
| Max Fluid Temp | 88˚C |
Download
