Direct from EPH - Delivery Lead time 4-5 Working days : Live Chat / 01985 850982

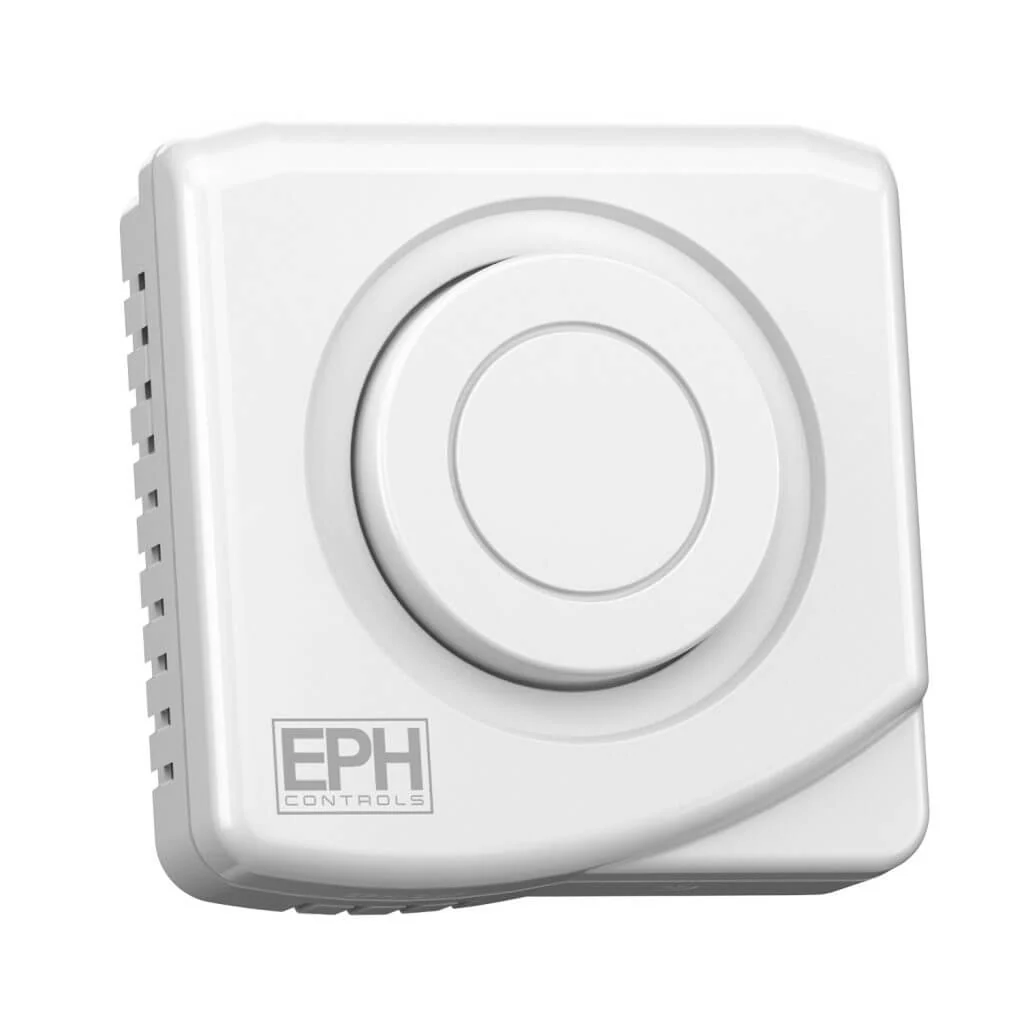

Tamperproof room thermostat with internal setpoint adjustment. This thermostat is a good solution for schools or public areas where maintaining a set temperature is required.
| Product Code | Switch Rating | Contact Type | Indicator Light |
|---|---|---|---|
| CMT | 10(3)A 230 & 24Vac | SPDT | No |
| Temperature Range | Limitable |
| Temp Range | 5...35˚C |
| IP Rating | IP20 |
| Switching Differential | ±1˚C |

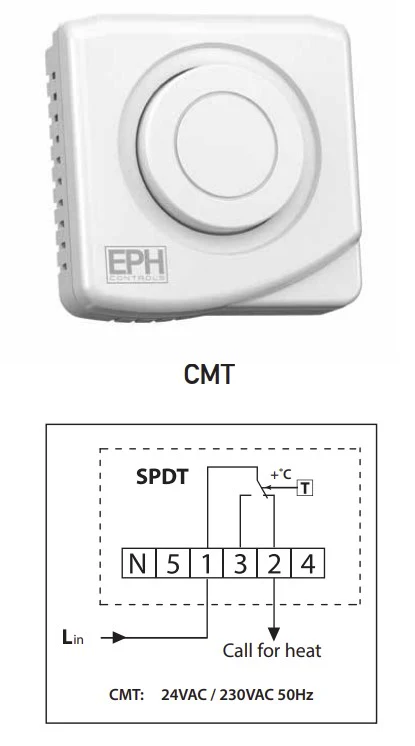

The room temperature is measured using an internal gas filled sensor and then compared with the setpoint. An electric switching replay is operated in relation to the temperature deviation. When the setpoint has been reached, the switch moves to the mid-position (OFF). The controller’s operating points are determined by the setpoint.
Download
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Direct from EPH - Delivery Lead time 4-5 Working days : Live Chat / 01985 850982
Tamperproof room thermostat with internal setpoint adjustment. This thermostat is a good solution for schools or public areas where maintaining a set temperature is required.
| Product Code | Switch Rating | Contact Type | Indicator Light |
|---|---|---|---|
| CMT | 10(3)A 230 & 24Vac | SPDT | No |
| Temperature Range | Limitable |
| Temp Range | 5...35˚C |
| IP Rating | IP20 |
| Switching Differential | ±1˚C |
The room temperature is measured using an internal gas filled sensor and then compared with the setpoint. An electric switching replay is operated in relation to the temperature deviation. When the setpoint has been reached, the switch moves to the mid-position (OFF). The controller’s operating points are determined by the setpoint.
