ESBE ARA600 Actuator 2 - Point / 3 - Point 24 V, 230V

ESBE ARA600 Actuator 2 - Point / 3 - Point 24 V, 230V

ESBE ARA600 Actuator 2 - Point / 3 - Point 24 V, 230V

Select Title

From $54.82

Original: $182.74

-70%

ESBE ARA600 Actuator 2 - Point / 3 - Point 24 V, 230V—

$182.74

$54.82

The Story

Actuator

ARA600 2-point

Reliable and quiet operation.
Can be used for both 2-point and 3-point control signal.
Perfect match between the actuator and ESBE valve.
Auxiliary switch available.

Series ARA600 with 2-point (on/off) signal is suitable for diverting operations together with valves such as VRG230. In these applications will only the end-positions of the actuator operating range be used. The compact actuator is designed for operating rotary valves DN 15-50 and has an operating range of 90°. The series can easily be manually operated by the pull-and-turn knob on the front of the cover. Auxiliary switch, available as premounted or optional kit, can be set in any position and is easily set by a unique solution.

Product range

ARA600, 2-point 230V

Installation dimensions for Actuator Series ARA600 with ESBE VRG100, VRG200, VRG300, VRB100 and VRH100 mixing valves.

Art.no.	Reference	Voltage [V AC]	Running time 90° [s]	Control signal	Torque [Nm]	Note
12120700	ARA635	230	15	2-point SPST	3	Recommended only for valves DN 15-32.
12121000	ARA636	230	15	2-point SPST	3	With premounted auxiliary switch. Recommended only for valves DN 15-32.
12120800	ARA645	230	30	2-point SPST	6
12121100	ARA646	230	30	2-point SPST	6	With premounted auxiliary switch.
12120900	ARA655	230	60	2-point SPST	6	Replaces 12002700
12121200	ARA656	230	60	2-point SPST	6	With premounted auxiliary switch. Replaces 12002900.

ARA600, 2-point 24 V

Installation dimensions for Actuator Series ARA600 with ESBE VRG100, VRG200, VRG300, VRB100 and VRH100 mixing valves.

Art.no.	Reference	Voltage [V AC]	Running time 90° [s]	Control signal	Torque [Nm]	Note
12120100	ARA637	24	15	2-point SPST	3	Recommended only for valves DN 15-32.
12120200	ARA647	24	30	2-point SPST	6
12120600	ARA658	24	60	2-point SPST	6	With premounted auxiliary switch.

Downloads

Type	Preview	Download
Data sheet	ARA600, 2-point
Installation instruction	ARA600, 2-point
Installation instruction	Auxiliary switch
Certificate	Declaration of Conformity ARA600, 2-point
Certificate	Declaration of Conformity UK CA, ARA600, 2-point
Certificate	Building Product Declaration BPD3
Certificate	EAC certificate (RU), 230V
Certificate	EAC certificate (RU), 12-24V
Certificate	UKRSEPRO certificate (UA)
Image	ARA600, high res
Image	ARA600 auxiliary switch, high res
2D Image	ARA600
3D drawing (stp file)	ARA6x1, ARA6x3, ARA6x5, ARA6x7, ARA6x9 with CW scale position
3D drawing (stp file)	ARA6x2, ARA6x4, ARA6x6, ARA6x8 with CW scale position
3D drawing (stp file)	ARA6x1, ARA6x3, ARA6x5, ARA6x7, ARA6x9 with CCW scale position
3D drawing (stp file)	ARA6x2, ARA6x4, ARA6x6, ARA6x8 with CCW scale position

ESBE ARA600 Actuator 2 - Point / 3 - Point 24 V, 230V - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ESBE ARA600 Actuator 2 - Point / 3 - Point 24 V, 230V - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ESBE ARA600 Actuator 2 - Point / 3 - Point 24 V, 230V - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ESBE ARA600 Actuator 2 - Point / 3 - Point 24 V, 230V - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ESBE ARA600 Actuator 2 - Point / 3 - Point 24 V, 230V - Image 6

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ESBE ARA600 Actuator 2 - Point / 3 - Point 24 V, 230V - Image 7

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ESBE ARA600 Actuator 2 - Point / 3 - Point 24 V, 230V - Image 8

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ESBE ARA600 Actuator 2 - Point / 3 - Point 24 V, 230V - Image 9

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ESBE ARA600 Actuator 2 - Point / 3 - Point 24 V, 230V - Image 10

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ESBE ARA600 Actuator 2 - Point / 3 - Point 24 V, 230V - Image 11

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ESBE ARA600 Actuator 2 - Point / 3 - Point 24 V, 230V - Image 12

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ESBE ARA600 Actuator 2 - Point / 3 - Point 24 V, 230V - Image 13

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ESBE ARA600 Actuator 2 - Point / 3 - Point 24 V, 230V - Image 14

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ESBE ARA600 Actuator 2 - Point / 3 - Point 24 V, 230V - Image 15

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ESBE ARA600 Actuator 2 - Point / 3 - Point 24 V, 230V - Image 16

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ESBE ARA600 Actuator 2 - Point / 3 - Point 24 V, 230V - Image 17

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ESBE ARA600 Actuator 2 - Point / 3 - Point 24 V, 230V - Image 18

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ESBE ARA600 Actuator 2 - Point / 3 - Point 24 V, 230V - Image 19

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ESBE ARA600 Actuator 2 - Point / 3 - Point 24 V, 230V - Image 20

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

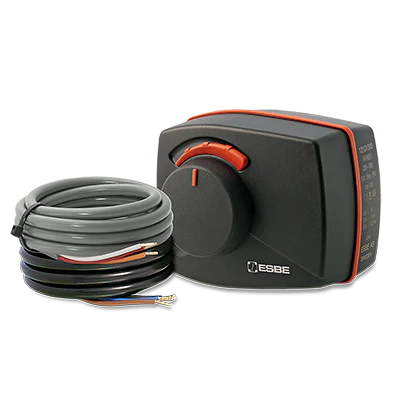

ESBE ARA600 Actuator 2 - Point / 3 - Point 24 V, 230V - Image 21

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ESBE ARA600 Actuator 2 - Point / 3 - Point 24 V, 230V - Image 22

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ESBE ARA600 Actuator 2 - Point / 3 - Point 24 V, 230V - Image 23

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ESBE ARA600 Actuator 2 - Point / 3 - Point 24 V, 230V - Image 24

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ESBE ARA600 Actuator 2 - Point / 3 - Point 24 V, 230V - Image 25

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

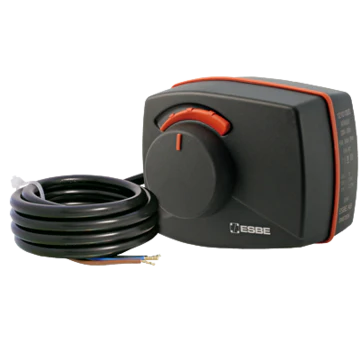

ESBE ARA600 Actuator 2 - Point / 3 - Point 24 V, 230V - Image 26

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ESBE ARA600 Actuator 2 - Point / 3 - Point 24 V, 230V - Image 27

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Actuator

ARA600 2-point

Reliable and quiet operation.
Can be used for both 2-point and 3-point control signal.
Perfect match between the actuator and ESBE valve.
Auxiliary switch available.

Series ARA600 with 2-point (on/off) signal is suitable for diverting operations together with valves such as VRG230. In these applications will only the end-positions of the actuator operating range be used. The compact actuator is designed for operating rotary valves DN 15-50 and has an operating range of 90°. The series can easily be manually operated by the pull-and-turn knob on the front of the cover. Auxiliary switch, available as premounted or optional kit, can be set in any position and is easily set by a unique solution.

Product range

ARA600, 2-point 230V

Installation dimensions for Actuator Series ARA600 with ESBE VRG100, VRG200, VRG300, VRB100 and VRH100 mixing valves.

Art.no.	Reference	Voltage [V AC]	Running time 90° [s]	Control signal	Torque [Nm]	Note
12120700	ARA635	230	15	2-point SPST	3	Recommended only for valves DN 15-32.
12121000	ARA636	230	15	2-point SPST	3	With premounted auxiliary switch. Recommended only for valves DN 15-32.
12120800	ARA645	230	30	2-point SPST	6
12121100	ARA646	230	30	2-point SPST	6	With premounted auxiliary switch.
12120900	ARA655	230	60	2-point SPST	6	Replaces 12002700
12121200	ARA656	230	60	2-point SPST	6	With premounted auxiliary switch. Replaces 12002900.

ARA600, 2-point 24 V

Installation dimensions for Actuator Series ARA600 with ESBE VRG100, VRG200, VRG300, VRB100 and VRH100 mixing valves.

Art.no.	Reference	Voltage [V AC]	Running time 90° [s]	Control signal	Torque [Nm]	Note
12120100	ARA637	24	15	2-point SPST	3	Recommended only for valves DN 15-32.
12120200	ARA647	24	30	2-point SPST	6
12120600	ARA658	24	60	2-point SPST	6	With premounted auxiliary switch.

Downloads

Type	Preview	Download
Data sheet	ARA600, 2-point
Installation instruction	ARA600, 2-point
Installation instruction	Auxiliary switch
Certificate	Declaration of Conformity ARA600, 2-point
Certificate	Declaration of Conformity UK CA, ARA600, 2-point
Certificate	Building Product Declaration BPD3
Certificate	EAC certificate (RU), 230V
Certificate	EAC certificate (RU), 12-24V
Certificate	UKRSEPRO certificate (UA)
Image	ARA600, high res
Image	ARA600 auxiliary switch, high res
2D Image	ARA600
3D drawing (stp file)	ARA6x1, ARA6x3, ARA6x5, ARA6x7, ARA6x9 with CW scale position
3D drawing (stp file)	ARA6x2, ARA6x4, ARA6x6, ARA6x8 with CW scale position
3D drawing (stp file)	ARA6x1, ARA6x3, ARA6x5, ARA6x7, ARA6x9 with CCW scale position
3D drawing (stp file)	ARA6x2, ARA6x4, ARA6x6, ARA6x8 with CCW scale position
