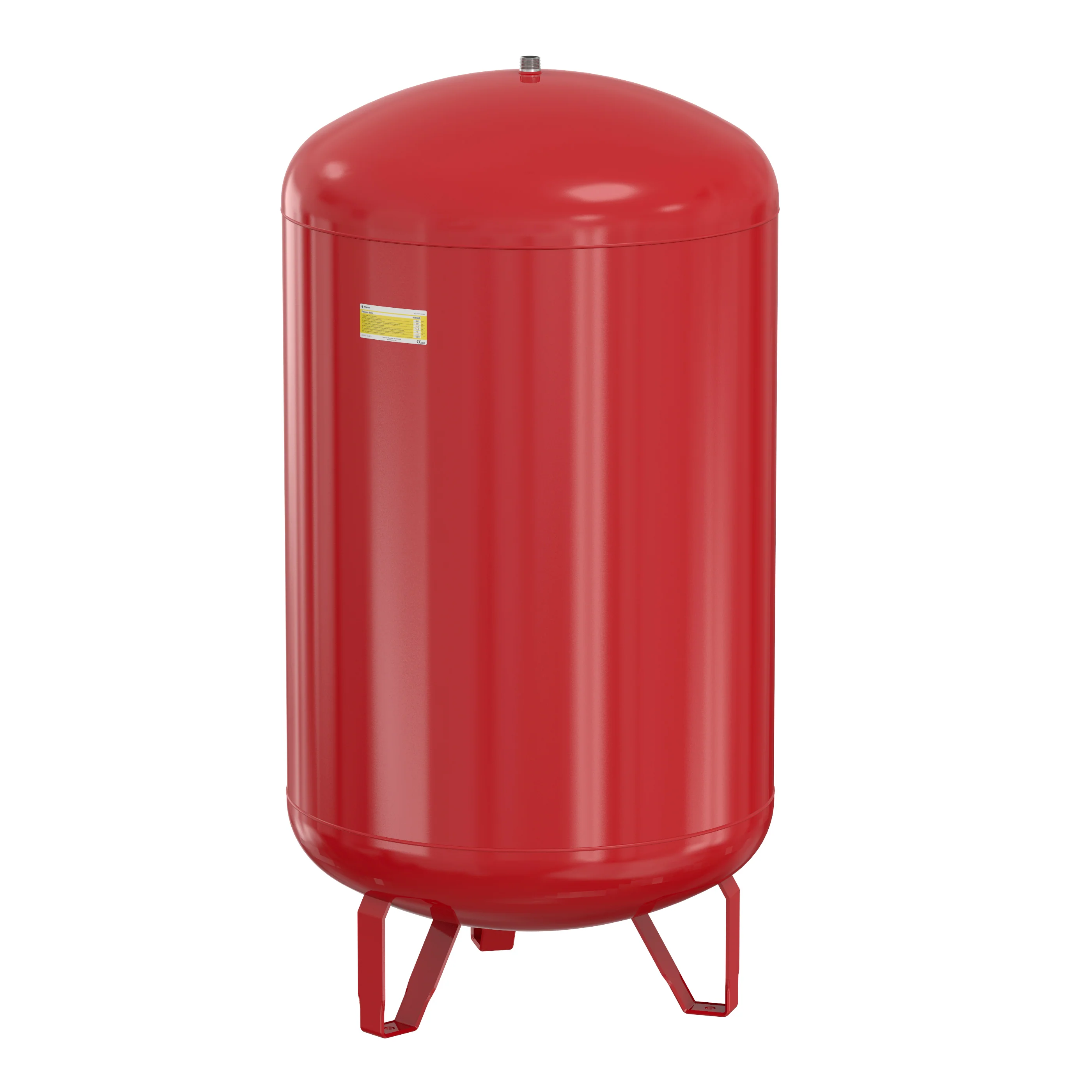

Flamco Flexcon Solar exp.ves. 600/3,0 [10bar]

Expansion vessels specially designed for solar powered installations (acc. to EN12828).

• The best expansion vessels thanks to our groundbreaking technology.
• Diaphragm: butyl rubber.
• Extremely low permeability of the diaphragm ensures that pre-charge pressure is maintained for a long time.
• The flexible diaphragms with rolling action are preformed and, in contrast to a bag type bladder, prevent stretching so that their properties are preserved over the long term.
• The unique clench ring construction clamps the diaphragm between the two vessel halves. This not only ensures a perfect seal but also prevents mechanical damage of the diaphragm during use (load distribution over the entire clamping area and not at 1 suspension point).

Technical Specifications

• Maximum working pressure: 10.0 bar.
• Vessels in accordance with EN13831.
• Suitable for systems with a maximum system temperature of 120 °C.
• Min./ max. temperature diaphragm: -10 / 110 °C.
• All welded construction.
• Suitable for addition of glycol-based anti-freeze up to 50%.
• In accordance with Pressure Equipment Directive 2014/68/EU.
• Tilting height:
•  800L: 1865 mm.
• 1000L: 2195 mm.
• Red (RAL 3002) epoxy powder coating.
• Flexcon Solar 110 - 300: including mounting kit.
