In-stock, Contact for Quote - Live Chat / 01985 850982
Without Pump DN25 / G 1" F
Dimensions HxWxD [mm] 421 x 249 x 220
For mixed heating circuit for manifold up to 70 kW or suitable for surface-mounted installation.
| Type | Dimensions | ||||||
| A [mm] |
B [mm] |
C1 [mm] |
C2 [mm] |
C3 [mm] |
C4 [mm] |
C5 [mm] |
|
| Top S MC DN 25 / DN 32 | 125 | 249 | 421 | 363.5 | 301.5 | 241 | 180 |

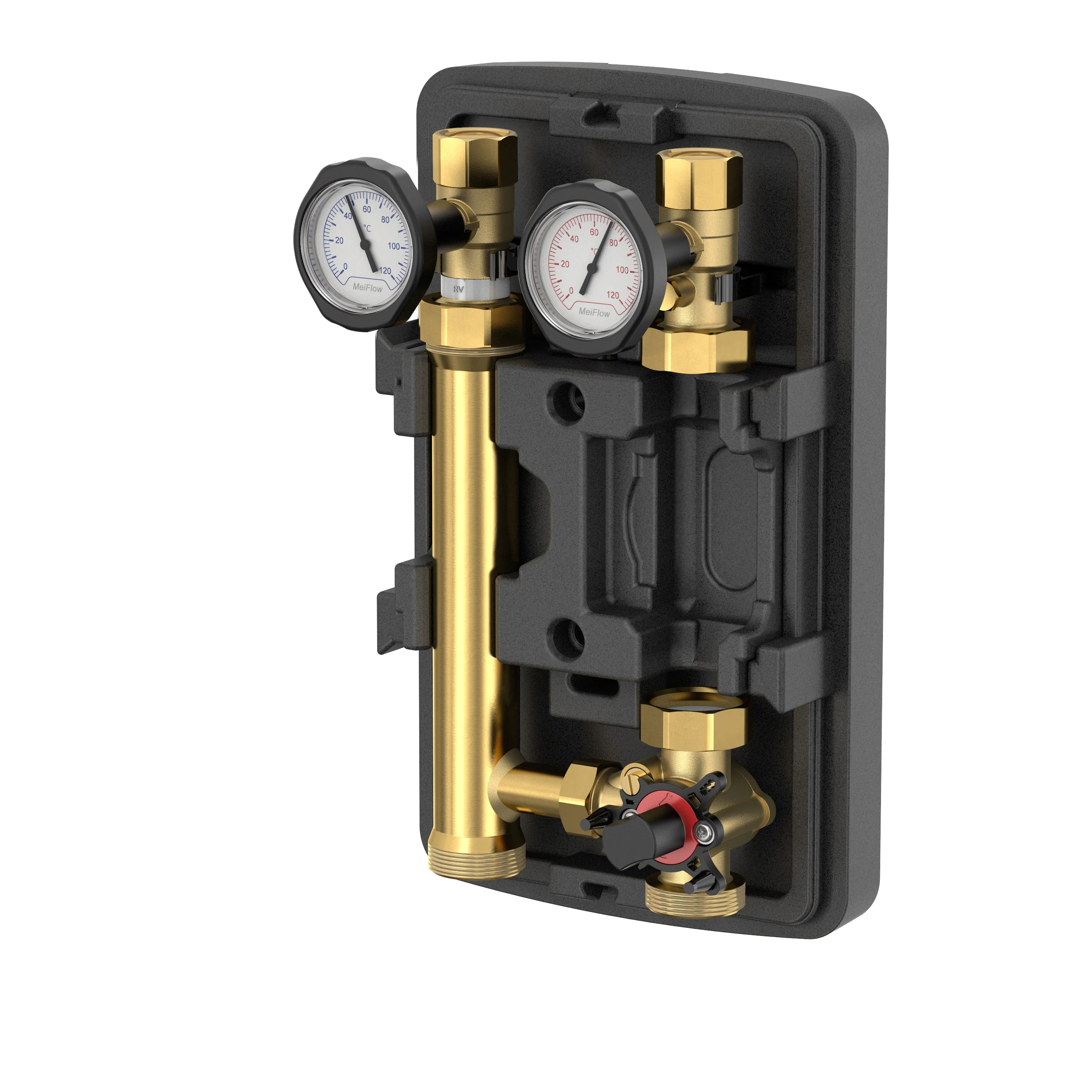

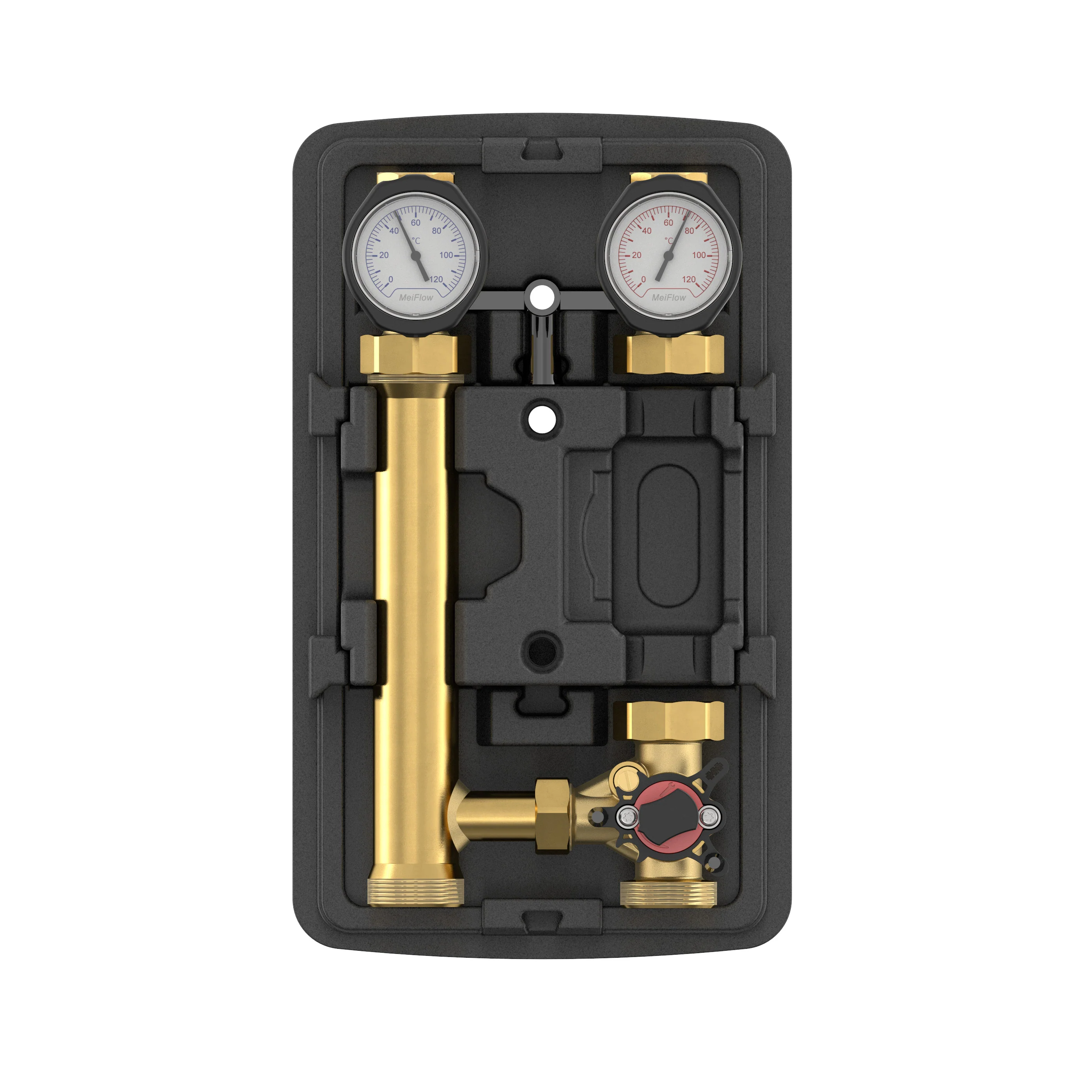

Complete with; two ball valves (on return line side with manually adjustable backflow limiter); sensor mounting to be in the flow line; two contact thermometers integrated in the ball valve handle (indicated range 0 - 120 °C); 3-way T-mixer with continuously adjustable bypass; design EPP insulation; including wall bracket; it is possible to swap flow and return line sides.
