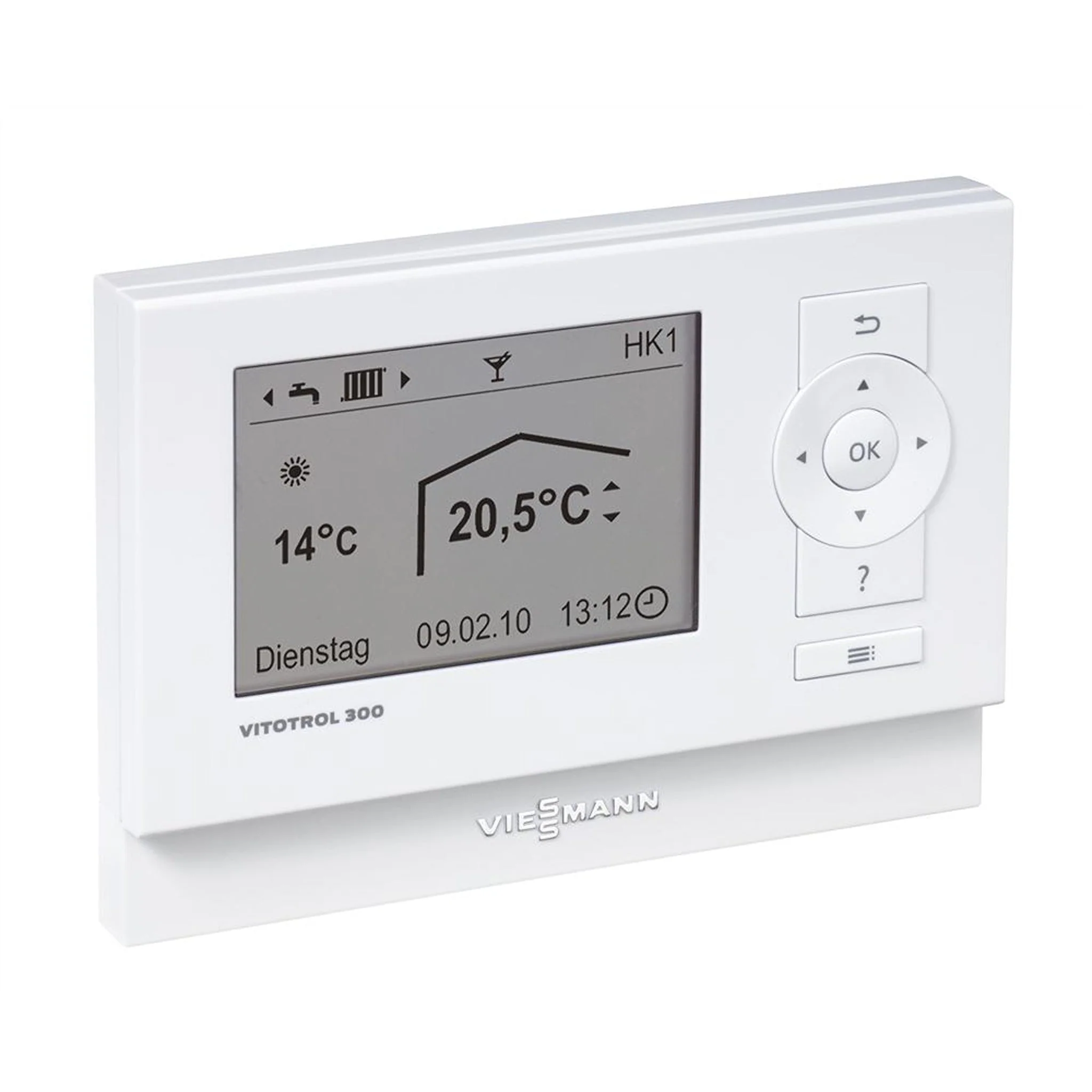

Viessmann Vitotrol 300A remote control with LCD display for up to 3 heating circuits (in conjunction with weather compensation Vitotronic 200)

Vitotrol 300A remote control with LCD display for up to 3 heating circuits (in conjunction with weather compensation Vitotronic 200)

For setting one, two or up to three heating circuits:

• Set room temperature and reduced set room temperature, DHW temperature, heating and holiday programs, plus party and economy functions
• Time program for the heating circuits, DHW cylinder and DHW circulation pump
• Backlit graphic display to show outside temperature, room temperature, operating conditions and plain text
• Room temperature sensor for room temperature hook-up (only for one heating circuit with mixer)



  If the Vitotrol 300A is used for room temperature hook-up, site the device in a main living room (lead room). Order room temperature sensor, part no. 7438537, if the Vitotrol 300A cannot be sited in a suitable location to capture the room temperature.

  Max. 2 Vitotrol per Vitotronic.

  Fits:
  Vitodens 200-W Vitotronic 200
  Vitodens 222-F Vitotronic 200
  Vitodens 242-F
  Vitorondens 200-T
